TriStar PWM and MPPT Solar Controllers
All models of TriStar Solar Controller must be programmed for lithium by Enerdrive. This is because the TriStar can only be programmed with a limited number of settings through the use of the built in DIP switches. Programming more advanced settings into the TriStar requires a proprietary communication kit and software. If you plan on using a TriStar for charging lithium batteries, please request that Enerdrive program the unit for lithium when you place your order.
If you have already purchased a TriStar and need it programmed for lithium, please send an email to support.enerdrive@dometic.com.au and the support team will assist you.
EcoPulse, EcoBoost, and ProStar Solar Controllers (metered only)
The metered versions (models with a display built in) of the EcoPulse, EcoBoost, and ProStar solar controllers can be programmed be programmed for lithium batteries. The non-metered versions (models without no display) cannot be programmed for lithium. If you wish to use one of these models of solar controller with a lithium battery, please make note of this when placing your order and Enerdrive will program the unit ahead of time.
Full List of Compatible Models

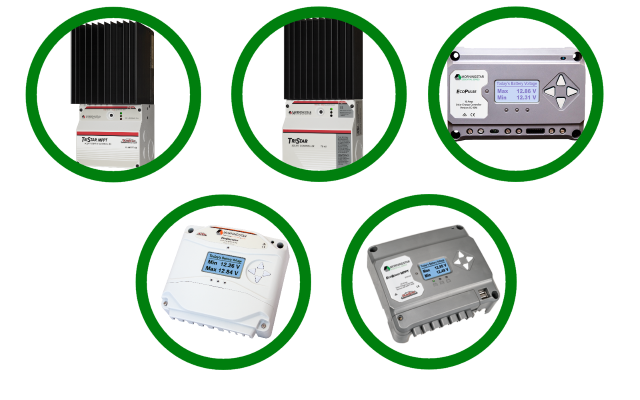

The list below contains all lithium compatible models of Morningstar Solar Controller sold by Enerdrive
- TS-45 - Morningstar TriStar Solar Controller 45A
- TS-60 - Morningstar TriStar Solar Controller 60A
- TS-MPPT-30 - Morningstar TriStar MPPT Controller 30A
- TS-MPPT-45 - Morningstar TriStar MPPT Controller 45A
- TS-MPPT-60 - Morningstar TriStar MPPT Controller 60A
- SR-EC-10M - Morningstar EcoPulse Solar Controller 10A - Metered
- SR-EC-20M - Morningstar EcoPulse Solar Controller 20A - Metered
- SR-EC-30M - Morningstar EcoPulse Solar Controller 30A - Metered
- SR-EB-20M - Morningstar EcoBoost MPPT Solar Controller 20A - Metered
- SR-EB-30M - Morningstar EcoBoost MPPT Solar Controller 30A - Metered
- SR-EB-40M - Morningstar EcoBoost MPPT Solar Controller 40A - Metered
- SR-PS-15M - Morningstar ProStar Controller 15A -Metered
- SR-PS-15M - Morningstar ProStar Controller 30A - Metered
- PS-MPPT-25-M - Morningstar ProStar MPPT Solar Controller 25A - Metered
- PS-MPPT-40-M - Morningstar ProStar MPPT Solar Controller 40 - Metered

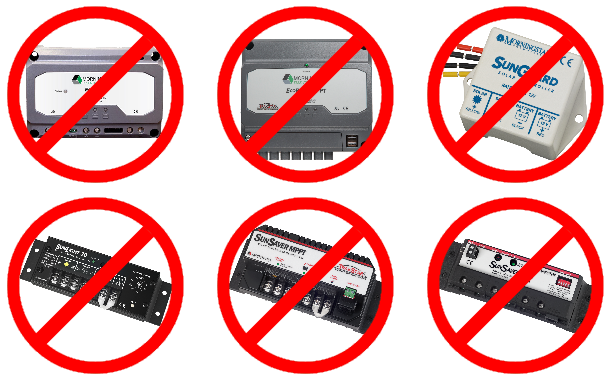

The following Morningstar Solar Controllers are not compatible with lithium batteries:
- SR-EC-10 - Morningstar EcoPulse Solar Controller 10A - Non-Metered
- SR-EC-20 - Morningstar EcoPulse Solar Controller 20A - Non-Metered
- SR-EC-30 - Morningstar EcoPulse Solar Controller 30A - Non-Metered
- SR-EB-20 - Morningstar EcoBoost MPPT Solar Controller 20A - Non-Metered
- SR-EB-30 - Morningstar EcoBoost MPPT Solar Controller 30A - Non-Metered
- SR-EB-40 - Morningstar EcoBoost MPPT Solar Controller 40A - Non-Metered
- SR-SG-4 - Morningstar SunGuard Controller
- SL-10 - Morningstar SunLight Controller 10A
- SL-10-24V - Morningstar SunLight Controller 10A - 24V
- SL-20- Morningstar SunLight Controller 20A
- SL-20-24V - Morningstar SunLight Controller 20A - 24V
- SS-6-12V - Morningstar SunSaver Controller 6A -12V
- SS-6L-12V - Morningstar SunSaver Controller 6A with load control - 12V
- SS-10-12V - Morningstar SunSaver Controller 10A - 12V
- SS-10L-12V - Morningstar SunSaver Controller 10A with load control- 12V
- SS-10L-24V - Morningstar SunSaver Controller 10A with load control - 24V
- SS-20L-12V - Morningstar SunSaver Controller 10A with load control - 12V
- SS-20L-24V - Morningstar SunSaver Controller 10A with load control - 24V
- SS-MPPT-15L - Morningstar SunSaver MPPT 15A
- SR-SSD-25 - Morningstar SunSaver Duo Solar Controller 25A
